Miniature Slip Rings for Medical Equipment

Miniature Slip Rings For Medical Equipment This unit can be used in any electromechanical system that requires unrestrai;

Send inquiry

Basic Info.

Working Speed	350rpm
Current	15A Per Ring
Contacting Material	Gold to Gold
Connector Way	Metal Pins
Transport Package	Bubble+ Carton Box
Specification	Gold to Gold slip rings
Trademark	ByTune
Origin	China, Shen Zhen
HS Code	8501200000
Production Capacity	50000 PCS Per Year

Product Description

Miniature Slip Rings For Medical Equipment

This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint.

Typical Application for Medical Equipment.The conductive slip ring is one of the most important parts in medical equipment, which needs to be rotated to transmit power and other signal systems at the same time. ByTune is focused in developing, designing, manufacturing slip rings nearly 20 years, we supply wide range slip rings and provide 360°rotary solutions. Besides we have rich experience in making slip rings for medical equipment.
Δ Product Details

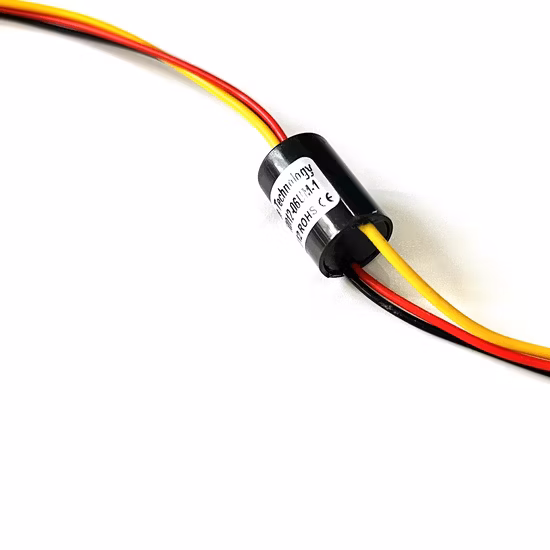

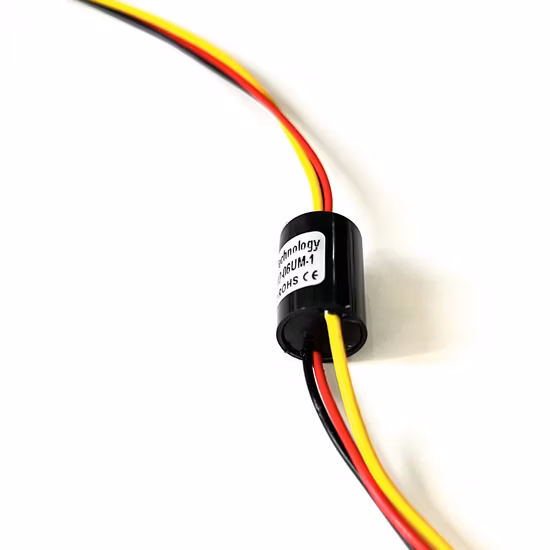

Miniature Slip Rings for Medical Equipment

ΔCapsule slip ring signal and powerCapsule slip ring enjoys the main feature of compact design which could provide signal/power combination circuits ( Ethernet, USB, RS, Canbus, video, sensor, power, control, etc. ). From the dimension design,this kind of compact slip ring could be divided into miniature slip ring, super mini slip ring and mirco slip ring.

Δ Main Application

Electrical test equipmentManufacturing and process control equipmentIndexing tablesCCTV pan / tilt camera mountsRobotics, rotary sensors, urgent illumination equipmentExhibit / display equipment.Aviation, military, instrument, medical equipment.Mini-type wire-rolling machineClosed-circuit controlΔ Features

Gold-Gold contacts makes long life time

Compatible with data bus protocols

Sealed units are also available Flexible, color-coded,

Transfers analog and digital signals

Precision ball bearings meet or exceed life requirements for most commercial applicationsΔ Advantages

Low torque minimize system torque budget

Compact design to fit in the most demanding space.

Smooth runningLow electrical noise

Quick shipment per your urgent requirement

360° Continuous rotation

High bandwidth transfer capabilityAddition of special componentsQuick shipment

ΔSpecifications

Operating Speed	0-300 rpm
Number of Circuits	12circuits(or more)
Voltage	240 VAC/DC
Current Rating	2A per circuit
Temperature Range	-20ºC~ +80ºC
Contact Material	Gold to Gold
Dielectric Strength	≥500 VAC @50Hz, between each circuit
Insulation Resistance	100 MΩ@ 500 VDC
Electrical Noise	1mΩMin
Life	80000000 runs
