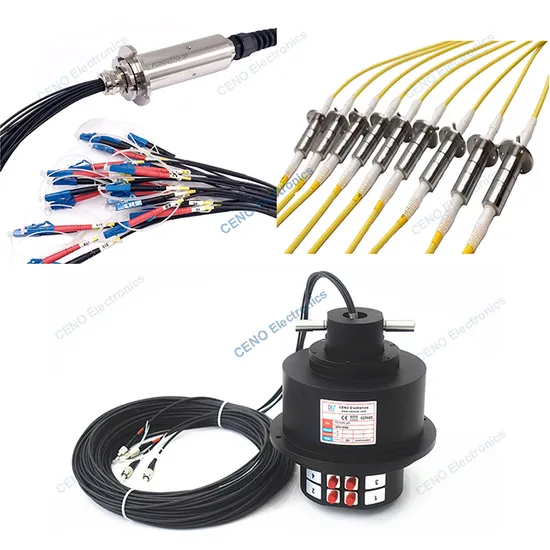

Fiber optic rotary joint with GJB150 ( 2

Overview

Basic Info.

Model NO.	FCN0231G-38
Weight	620 g
Housing material	Stainless steel
Return loss	≥40dB
Connector	ST,FC,SC,LC
IP grade	IP54 ( IP65,IP67optional)
Wavelength	850nm -1550nm (SM/MM)
Bandwidth	+/- 50nm
Fiber channel	2-31 channels optional
Transport Package	Carton Box
Specification	Precious metal / Alloy / Engineer plastic
Trademark	CENO
Origin	Shen Zhen, China
Production Capacity	50000pieces/Year

Product Description

FCN series is a family of fiber optic rotary joints manufactured by CENO.Such rotary unions feature optic fiber as the media for data transmission.FCN0231G-38 is a multi-channel fiber optical slip ring,which can contain 2 to 31 channels fiber optical.we can choose single mode or multi mode fiber or single mode and multi mode mixed use.It has good optical performance and is waterproof and dustproof function,waterproof grade can upto IP65,IP67,IP68 or more higher.The installation volume is only 38mm,which is the smallest diameter of the fiber optical slip rings currently,it is very suitable for equipment with small installation space.

Features

1. Fiber channel upto 31
2. Wavelength 850-1550nm
3. Easy to integrate power
4. Maintenance free

Applications

1. Medical OCT
2. Packaging machine
3. Offshore applications
4. High-definition camera

Optional

1. Channel number
2. IP protection grade
3. Fiber optic type
4. Connector type

Product Parameters

FCN0231G-38	Specification
Fiber channel	2-31 channels optional
Wavelength	850nm -1550nm (SM/MM)
Bandwidth	+/- 50nm
Insertion loss	<3.5dB
Pulling force	≤12N
Operating speed	0-300 rpm
Return loss	≥40dB
Weight	620 g
Housing material	Stainless steel
IP grade	IP54 (IP65,IP67 optional)
Vibration shock standard	GJB150
Connector	ST,FC,SC,LC

Outline drawing
