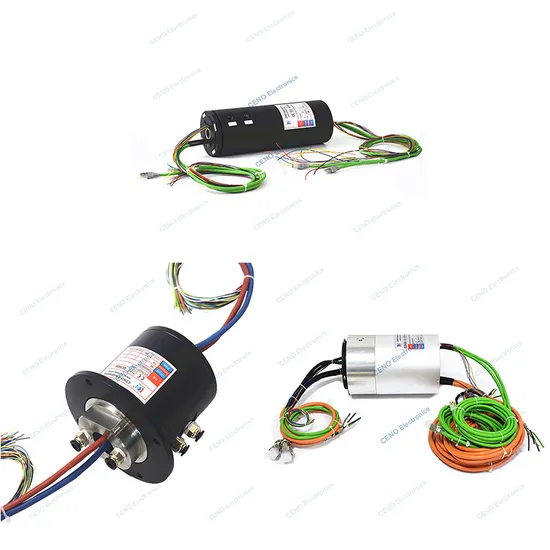

integrated signal slip ring combined with Hydraulic

Overview

Basic Info.

Model NO.	QCN0203-03P3-47S
Working speed	0~100 rpm
Dielectric strength	≥[email protected] (power) ≥[email protected] (signal)
Contact resistance fluctuation	Max 30m&Omega
Insulation resistance	≥500MΩ@500VDC ≥100MΩ@100VDC
Voltage	0~220VAC/VDC
Circuits & Current	3*10A,5*signal ,1*RS422, 1*RS232,1*USB2.0,1*1000M
Transport Package	Carton Box
Specification	Precious metal / Alloy / Engineer plastic
Trademark	CENO
Origin	Shen Zhen, China

Product Description

Product Description

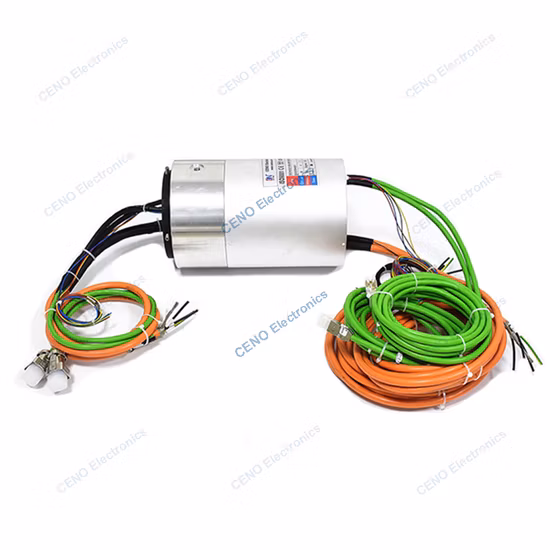

This is a integrated slip ring with 3 rings 10A,5 rings normal signal,1 group RS422,1 group RS232,1 group USB2.0,1 group 1000M Ethernet and 1 group HDMI.with 2 channels for liquid,the inner center hole can pass through the drive shaft, gas-liquid passage,it can also integrate high frequency,fiber,encoder,wave guide,gas and liquid and other joints.Slip rings can be used in any electromechanical system that requires unrestrained,continuous rotation while transferring power or data from a stationary to a rotating structure.

Features

1. Various signal integrated
2. Temper -45°C/+ 80°C
3. Two channels for liquid
4. Low torque

Applications

1. Electrical test equipment
2. Tilt camera mounts
3. Exhibit display equipment
4. Robotics

Optional

1. Circuit number
2. Current rating & number
3. Interface size
4. IP protection grade

Product Parameters

QCN0203-03P3-47S	Specification
Current	3*10A,5*signal ,1*RS422,1*RS232,1*USB2.0,1*1000M Ethernet and 1*HDMI .2* liquid
Voltage	0~220VAC/VDC
Electrical noise	≤30mΩ(50rpm)
Dielectric strength	≥15[email protected] (power)≥3[email protected] (signal)
Insulation resistance	≥500MΩ@500VDC (power)≥100MΩ@100VDC (signal)
Operating speed	0-100 rpm
Contact material	Precious metals
Housing material	Aluminum alloy
Hydraulic channel	2 channel*water (G3/8'')
Pressure	≤1.0MPa

Outline drawing
